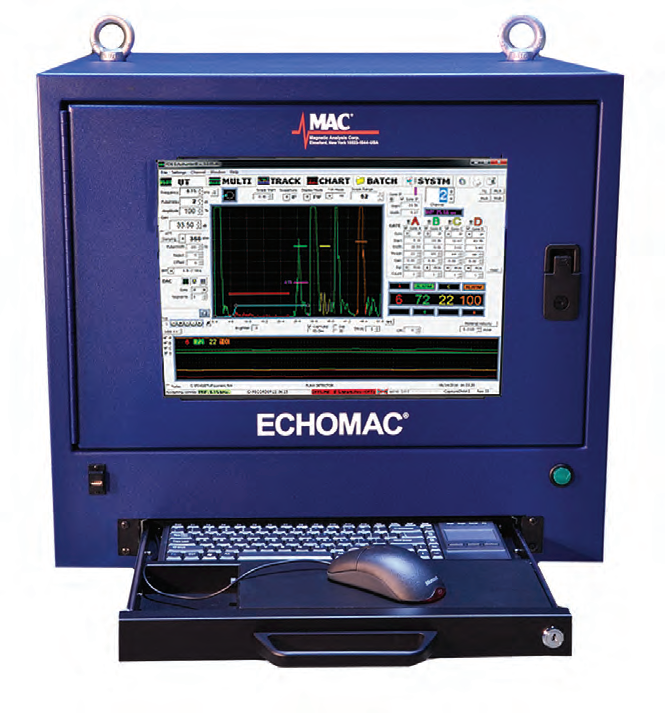

Echomac?FD-6/6A Ultrasonic detector

Echomac? FD-6/6A Ultrasonic testing equipment is mainly used for pipe and bar defect detection, thickness measurement and diameter measurement.

Versatile Ultrasonic tester with superior performance and versatile, intuitive operation.
For full inspection of tubes, pipes and bars, plate and weld.
Operate on or off line.
Upgrade and/or replace older ultrasonic testers.
Use with rotary, spin-the-tube, squirter and bubbler installations.
Vivid, real time, flicker free full color display of test signals, thresholds and settings.
Up to 32 independent channels in one instrument.
Model 6A is GE Qualified as of 9-6-16 for P3TF31 Class A & B, & P29TF82 Class A & B, typical requirements for nuclear and aerospace applications.

Pulse generator

Pulse type	Negative square wave pulse
Pulse voltage	500 ohm damped maximum voltage 225 Vp, (0 to 100% adjustable, 1% step)
Pulse width	30 to 500 ns (adjustable step 5 ns)
damping	50 to 350 ohms (adjustable step 20 ohms)
Rise time	10 ns or less
PRF	10Hz to 15 kHz (adjustable step 10Hz)
Pulse delay	1 to 1000 μs (adjustable step 1 μs)
Operation mode	Pulse-echo or transmission mode

Test carbon steel, duplex stainless steel, stainless steel, aluminum, titanium, copper and other metals and alloys;
Detect defects, measure dimensions and wall thickness;
Detect defects and inclusions in pipes and rods;
Test the ellipticity and eccentricity of the pipe;
Inspect the strip before the welding of the welded pipe;
Upgrade and/or replace older ultrasonic inspection equipment and systems;
It is used in conjunction with ultrasonic rotating body, rotating pipe, water jet and immersion testing system.
